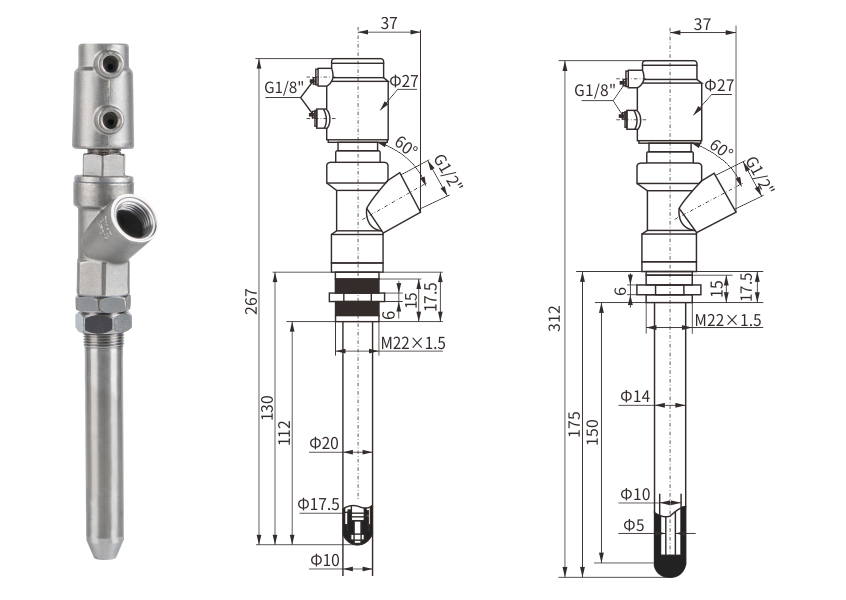

產品名稱:氣動灌裝閥
技術參數
雙作用常閉型:
管道壓力:0-0.7MPa
控製壓力:0.38-0.42MPa

雙作用自由態:
管道壓力:0-0.7MPa
控製壓力:0.3-0.35MPa

閥體材質:CF8或CF8M
密封材料:PTFE
介質溫度:-10°C~+120°C



TECHNICAL PARAMETERS
Double acting normally closed type:
Pipeline pressure:0-0.7MPa
Control pressure:0.38-0.42MPa

Double acting free state:
Pipeline pressure:0-0.7MPa
Control pressure:0.3-0.35MPa

Body material:CF8 or CF8M
Sealing material:PTFE
Medium temperature:-10°C~+120°C




特點

廣泛應用於灌裝機械,尤其適用於粘稠、膏狀及容易起泡沫的液體灌裝;灌裝速度快,精準穩定;精致小巧,便於排管布局;灌裝頭底部特殊的密封設計,可以實現灌裝無滴漏;灌裝頭底部倒角結構,具有導向定位作用,可下潛灌裝。

ADVANTAGES

Widely used in filling machine commandments, Especially suitable for the filling of viscous, pasty and foamy liquids; Fast filling speed, accurate and stable; Exquisite and compact, easy to arrange the tube; Special sealing design at the bottom of the filling head, Can achieve filling without dripping; Chamfer structure at the bottom of the filling head, With guiding and positioning effect, it can be submerged in filling.
